肋軟骨隆鼻完全沒有缺點嗎? (隆鼻, 鼻整形)

http://easypretty123.pixnet.net/blog



基本上鼻整形手術每一種方法或材料都有它的問題, 醫師則是

想盡方法想找到完美的方法, 不過目前還有很多爭議. 矽膠模

型則是已在台灣使用了三十年, 缺點已為大家詳細討論所熟知,

全自體鼻整形歷史還不夠悠久, 是不是真的沒問題, 應該沒人敢

保證, 唯一可確定的就是這是目前的趨勢, 醫師間正熱烈分享討

論中, 矽膠則似乎已很成熟, 所以沒什麼可討論的.

以下為韓國醫師2012年發表有關自體肋軟骨的論文, 基本上其

實沒有韓式隆鼻, 而是結構式隆鼻, 韓式隆鼻的名稱是台灣醫師

發明, 而不是韓國醫師發明, 不過不論哪個國家的醫師只要做得

好, 就值得學習.



Outcomes Following Rhinoplasty Using Autologous Costal Cartilage (自體肋軟骨)

自體肋軟骨鼻整形術的結果

Byoung Jae Moon, MD; Ho Jun Lee, MD; Yong Ju Jang, MD, PhD

Author Affiliations: Department of Otolaryngology, Asan Medical Center,

                               University of Ulsan College of Medicine, Seoul, South Korea.

South Korea 南韓, 這幾個字大家應該都認得

Arch Facial Plast Surg. 2012;14(3):175-180. doi:10.1001/archfacial.2012.138.



Correspondence: Yong Ju Jang, MD, PhD, Department of Otolaryngology, Asan Medical Center, University of Ulsan College of Medicine, 88 Olympic-ro 43-gil, Songpa-gu, Seoul 138-736, South Korea (jangyj@amc.seoul.kr).

Accepted for Publication: January 25, 2012.

Author Contributions:Study concept and design: Lee and Jang. Acquisition of data: Moon, Lee, and Jang. Analysis and interpretation of data: Moon, Lee, and Jang. Drafting of the manuscript: Moon and Lee. Critical revision of the manuscript for important intellectual content: Moon and Jang. Administrative, technical, and material support: Moon, Lee, and Jang. Study supervision: Jang.

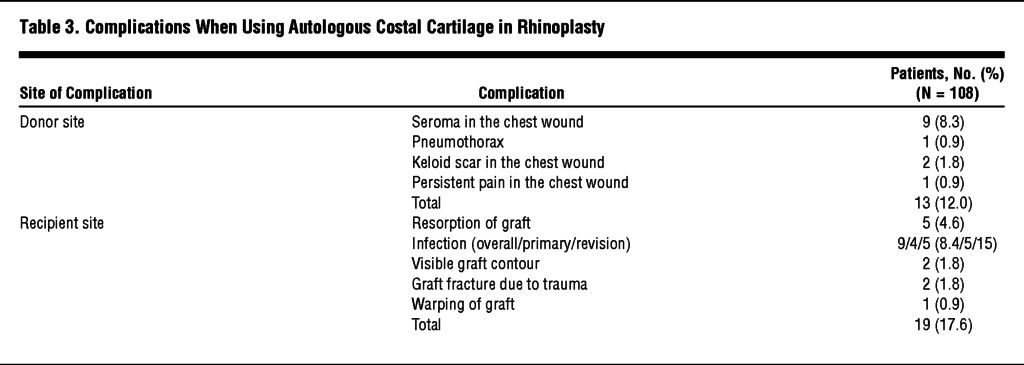

qoa120011t3
可能發生氣胸, 血胸, 疤痕, 持續疼痛, 感染, 軟骨吸收, 軟骨彎曲, 軟骨邊緣明顯

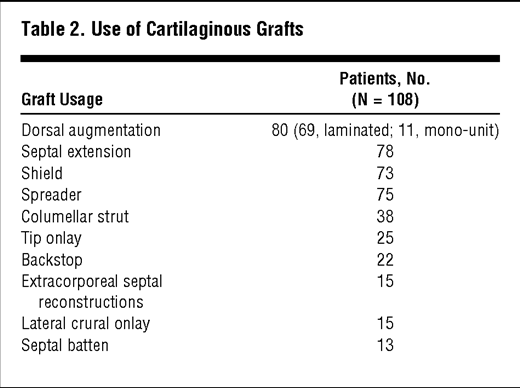

m_qoa120011t2

疤痕

m_qoa120011f2

感染

m_qoa120011f3

吸收

m_qoa120011f4

彎曲

m_qoa120011f5



以下為另一篇, 2012年於美國整形外科雜誌, 也出自南韓醫師

Plast Reconstr Surg. 2012 Dec;130(6):1338-48. doi: 10.1097/PRS.0b013e31826d9f03.

Use of autologous costal cartilage in Asian rhinoplasty.

Source

Department of Otorhinolaryngology-Head and Neck Surgery, Seoul National University College of Medicine, Seoul, Korea.

Abstract

BACKGROUND:

The authors present the senior author's experience and evolution of techniques with the use of autologous costal cartilage grafts in Asian rhinoplasty.

METHODS:

Eighty-three patients who had rhinoseptoplasty with autologous costal cartilage grafts were included in this retrospective review. The types of grafts, complications related to the graft itself and graft harvesting, surgical outcome, and patient satisfaction were evaluated. The techniques of graft carving and cartilage harvesting were also reviewed.

RESULTS:

The mean postoperative follow-up duration was 29.5 months. Of 83 cases, 39 were revision cases. Autologous costal cartilage grafts were used for the dorsum in 83 cases, for the tip in 66 cases, for the septum in 58 cases, and for the ala in 23 cases. The complication rate related to grafts was 12 percent, which included five warped grafts and five infections. All infections were controlled with intravenous antibiotics. Two patients who had infection developed mild resorption of the grafts. Graft exposure, mobility, or significant resorption was not observed. Two patients underwent revision surgery for aesthetic dissatisfaction and one was planned. The length of chest incision for graft harvesting was 2.4 cm on average. There was no pneumothorax or significant donor-site pain. The donor-site scar was minimal, although two patients developed a hypertrophic chest scar. Overall, functional and aesthetic outcome was satisfactory in most patients.

CONCLUSIONS:

結論

Autologous costal cartilage grafts in Asian rhinoplasty is a versatile and reliable graft material for both primary and revision cases. Even with minimal complications and morbidities, the possibility of warping in dorsal onlay grafts and the possibility of infection in revision surgery need attention.

自體肋軟骨為可信賴的材料, 但還是要小心彎曲及感染問題







以下則非關肋軟骨, 而是使用Gore-Tex 10年的追蹤

Nasal Augmentation Using Gore-Tex
A 10-Year Experience
Michael S. Godin, MD; S. Randolph Waldman, MD; Calvin M. Johnson, Jr, MD
Objective: To determine on an ongoing basis the safety
and efficacy of expanded polytetrafluoroethylene (Gore-
Tex soft tissue patch and preformed nasal implants) as
an implant in rhinoplasty.
Design: A retrospective study of 309 consecutive patients
who underwent rhinoplasty, including augmentation
with Gore-Tex, during a 10-year period.
Setting: Two major academic medical centers and 2 private
office surgical centers.
Intervention: One hundred sixty-two patients (52%)
presented for primary rhinoplasty; the remaining 147
(48%) presented for revision surgery. All received Gore-
Tex implants to augment the nasal dorsum and/or base.
The grafts ranged from 1 to 10 mm in thickness. Follow-
up ranged from 5 months to 10 years, 5 months, with
an average of 40.4 months.
Main Outcome Measures: Clinically noted complications
and patient satisfaction.
Results: Ten (3.2%) of 309 grafts became infected and
were removed. One graft was removed and 1 graft was
modified and replaced postoperatively because of excessive
augmentation. Infection requiring removal occurred
in 8 patients (5.4%) undergoing revision rhinoplasty
and in 2 patients (1.2%) undergoing primary
rhinoplasty. Nasal septal perforation was present preoperatively
in 3 of the patients who developed infection requiring
removal, and we consider it a contraindication
for nasal Gore-Tex implantation.
Conclusions: Gore-Tex remains an effective implant material
for nasal augmentation in rhinoplasty. The complication
rate in primary cases is low. The risk of infection
necessitating removal rises significantly in revision
cases, where its use may still be desirable but must be
weighed more carefully.
Arch Facial Plast Surg. 1999;1:118-121

結論: Gore-Tex很不錯, 但在二次手術的情形下感染率也高





以下這篇更久, 追蹤Gore-Tex 17年



Applications of GORE-TEX Implants in Rhinoplasty Reexamined After 17 Years

Krzysztof Conrad, MD, FRCSC, FRCS; Cory Stephen Torgerson, PhD, MD, FRCSC; Grant S. Gillman, MD, FRCSC
Arch Facial Plast Surg. 2008;10(4):224-231. doi:10.1001/archfaci.10.4.224.


Objective      To determine the efficacy of GORE-TEX (W. L. Gore & Associates Inc, Flagstaff, Arizona) alloplast in rhinoplasty.

Design      A 17-year retrospective medical chart review at a teaching hospital, community hospital, and private facial cosmetic surgery center. A total of 521 patients (122 male and 399 female; age range, 13-70 years) were followed for 12 months to 17 years. All patients had undergone GORE-TEX implantation rhinoplasty (685 implants in 158 primary procedures and 508 secondary procedures) performed by 1 surgeon. Patient satisfaction, expressed with respect to desired cosmetic benefit and functional outcome, and physician assessment, based on aesthetic improvement, technical considerations, and complications, were evaluated. Results were assessed according to the follow-up notes in the medical chart reflecting patients' and surgeon's comments and full preoperative and postoperative photographic documentation.

Results      GORE-TEX alloplasts, 1 to 10 mm thick, implanted in the nasal dorsum (n = 264), lateral nasal wall (n = 252), supratip dorsum (n = 85), and premaxilla (n = 84) showed excellent stability and tissue tolerance. Biological complications that required implant removal occurred in 1.9% of patients and included infection, soft tissue swelling, migration, and extrusion.

Conclusions      With the exception of the nasal tip, columella, or problems in which corrections would require rigidity of the grafted or implanted material, the GORE-TEX alloplast is a safe, inexpensive, and predictable alternative to autografts. In the present series, more than 95% of implants used were 1 to 4 mm thick. In the remaining 5%, 6 implants ranged from 8 to 10 mm thick, and we found them acceptable. It is our opinion that for both primary and secondary rhinoplasty with adequate endonasal and external soft tissue coverage, GORE-TEX should be strongly considered for major and minor corrections of the nasal wall and bridge in properly selected patients.

結論: 當皮膚組織足夠的情況下, Gore-Tex 值得採用



m_qoa80006f7





以下則是 Dacron 的使用

Dacron Implants in Rhinoplasty:  A Review of 136 Cases of Tip and Dorsum Implants

Nabil Fanous, MD, FRCSC; Mark Samaha, MD; Adi Yoskovitch, MD, MSc
From the Department of Otolaryngology–Head and Neck Surgery, McGill University, Montreal, Quebec.

 Arch Facial Plast Surg. 2002;4(3):149-156. doi:.



Our complication rate of infection is comparable to previously reported rates of 4% to 9%.

感染率每一百人有 4-9個



所以每種材料都有風險, 醫師應與



討論後再決定, 而不是只鼓吹



 工模型隆鼻或全自體鼻整形

文章標籤

easypretty123 發表在 痞客邦 留言(0) 人氣()

structural rhinoplasty,結構式隆鼻

http://easypretty123.pixnet.net/blog

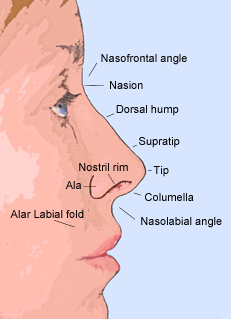

鼻子外觀及英文名稱對照



  Surface-anatomy-of-the-nose



Nasion: The Starting Point of Your Nose

            鼻樑開始處

Nose Columella: The Base of the Nose

                        鼻中柱

Nose Tip and Supra-Tip, 鼻尖





Rhinoplasty-VS-Asian-Rhinoplasty







高加索人種鼻子較高較窄

亞洲人種鼻子較塌較寬, 所以有人要用夾鼻器, 但應該

沒有效





1353048108-1479648582







非裔人種鼻子則更塌更寬



Gabrielle-union-nose-job







大部分的人不喜歡如下圖, 寬寬扁扁的鼻樑, 圓圓大

大的鼻頭





Asian Nose







 要隆鼻前要先知道鼻子的基本構造, 如下圖, 黃色部

分是 硬骨(bones), 藍色部分是軟骨(cartilages)

所謂結構式鼻整形(structural

    rhinoplasty) 即是

1. 把寬大的硬骨外側及中間視需要用骨鑿敲開, 再

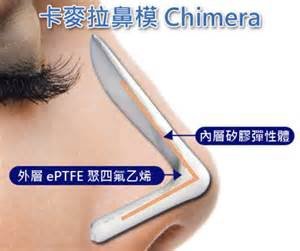

    用人工材料(如gortex, 卡麥拉鼻模, 矽膠鼻模)

    或生物材料(如自體或異體肋軟骨, 或筋膜包住切

    碎的軟骨當鼻樑)

2. 以耳軟骨, 鼻中膈軟骨, 肋軟骨做鼻頭的支架

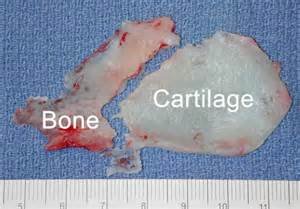

硬骨(bone)及軟骨(cartilage)的實際照片





 th4

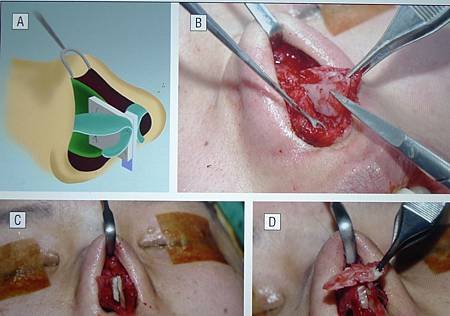

如下圖用自體軟骨來做鼻翼軟骨的支架, 進而支撐鼻





L1030518





支撐做好後鼻頭就會變高, 變挺, 變長







以下為墊高鼻樑的常用材料





thCA7DHOQW

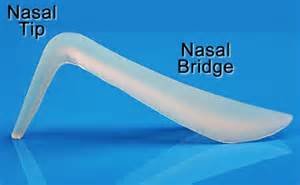

矽膠鼻模



thCAQYDN42

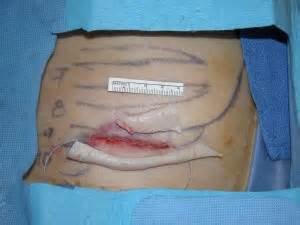

肋軟骨



thCAMK1NPH



Gore-Tex



thCAKBEV3L





以下為鼻頭常用材料



鼻中膈軟骨



Example of explanted septal cartilage to be used f



耳軟骨



 thCAD2PTXF





但沒有材料是完美的, 均有優缺點, 例如以下報導



由於台灣韓式隆鼻醫生皆師承自韓國鼻雕大師鄭東學

博士,加上當時韓劇引發的“韓流”襲捲全台,風氣民

心所趨之下,因此取名為「韓式隆鼻」。其實,這種

術式及觀念乃源至於西方並非韓國所發明,只是透過

先驅者鄭東學博士大聲疾呼且身體力行,得到絕大多

數醫師的認同,而慢慢宣揚開來。因此,正確名稱應

該稱為「結構式隆鼻, structural rhinoplasty」

也就是在鼻頭部分捨棄矽膠完全改用自體軟骨(以鼻中

膈軟骨為首選,因為支撐力強而且直;材料若不夠再

加取耳朵軟骨)來塑形,鼻樑則仍然用人工的材料來墊

高。至於人工的材料,可有I型矽膠鼻模 和

GORE-TEX兩種選擇。 GORE-TEX是一種穩定性與

生物相容性高的高級人工材料,廣范使用於人工血管和

心臟外科的手術。GORE-TEX因為柔軟服貼可與自體

組織融為一體,所以,若用於鼻樑整形會比矽膠自然不

突兀,且不會有莢膜收縮的問題。缺點是價格昂貴,醫

生需多花時間將片狀的GORE-TEX裁切堆疊固定。但是

因為美國原廠突然將美容整形用的GORE-TEX產品停產

,在材料使用的習慣性與熟悉性和材料未來及將斷貨的

考量下,除非患者對矽膠過敏排斥或先前的隆鼻已發生

莢膜收縮的問題,否則,大多醫生仍選用I型矽膠做為

鼻樑墊高的主要材料。

2008年11月29 -30日在韓國舉行的第12屆國際鼻整

型研習會裡,有一些令人驚訝和小小沮喪的新發現被報

告出來:一.是原本以為將成為完美人工材料的

Gore-tex仍然會有微鈣化及因為次發於免疫異物反應

而產生結構變性的情形;二.是因為Gore-tex特殊小孔

結構的關係,所以可讓組織長入因而生物相容性較高,

但也因此可能潛藏細菌而造成延遲性感染的案例發生

(雖然此例很低)。基於這些有別於以往認知的新發現

,所以,Gore-tex還是有它的缺陷,未來醫學科學家

仍需繼續努力尋找研發更新一代的完美人工材質,或是

往自體組織的「組織工程」(tissue-engineering)

大道探索下去。而最新對Gore-tex缺點的初步發現,

除了需繼續追蹤使用時間更久後的變化,也讓很多醫生

又轉而將矽膠材質當作優先選用的人工材料了。

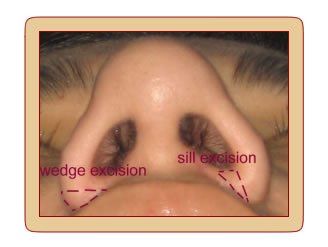

 鼻翼太寬者, 可能需要鼻翼縮小手術



 WideNasalBase_Image3





佳醫美人診所(台北市仁愛路圓環)

台北市大安區仁愛路四段66號

02-27086333

盧龍一醫師 每周三.周五下午門診
